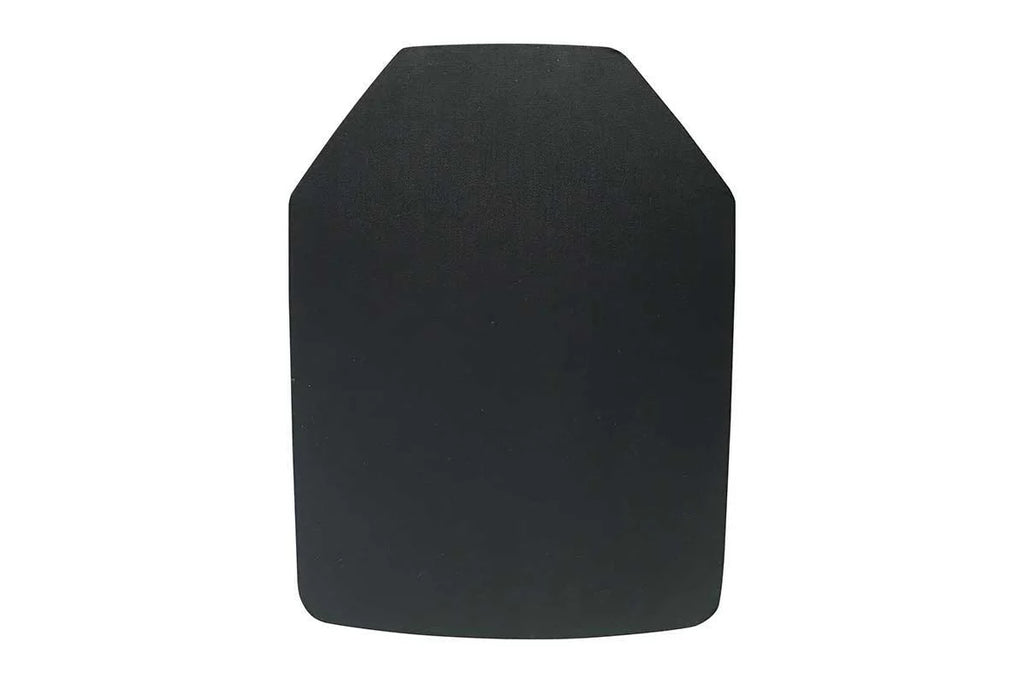

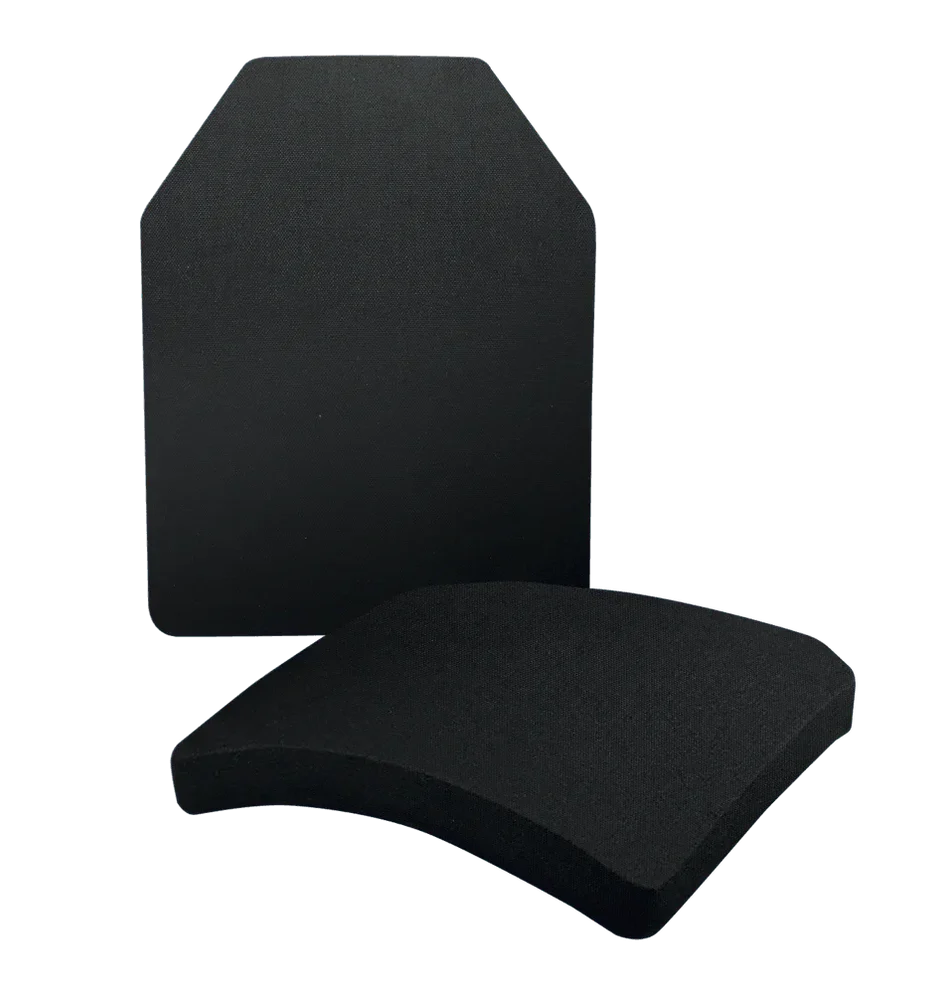

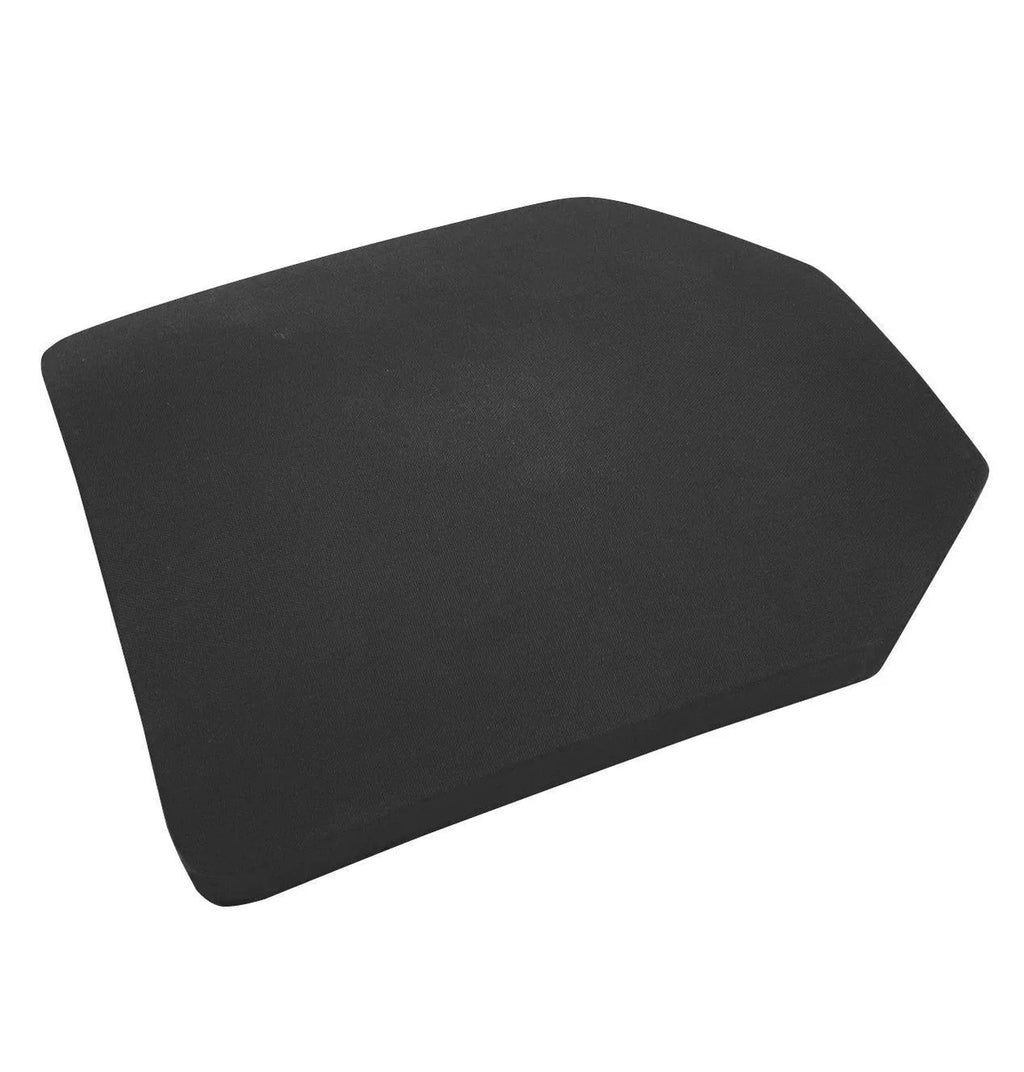

Body Armor SAPI Plates- Level IV (26605)
Size

26605 NIJ 0101.06 Certified Level IV SAPI Plate – Triple Curve, Multi-Hit, Stand-Alone Hard Armor

The 26605 Level IV SAPI Plate is a triple-curve, stand-alone, multi-hit hard armor solution designed for maximum protection, durability, and comfort. Certified under the NIJ 0101.06 Level IV Standard, these plates stop the most advanced armor-piercing rifle threats while maintaining a balanced weight-to-protection ratio.

Advanced Construction:
Built with a high-density reinforced alumina ceramic core (Al₂O₃) backed by lightweight layered polymer composite fiber, the 26605 provides superior ballistic performance. The black Cordura nylon covering enhances durability, while a foam pad on the strike face protects the plate during severe or repeated drops. While NIJ standards require plates to pass 2 drop tests, the 26605 undergoes an internal 10-drop test and X-ray inspection before environmental and ballistic testing for unmatched reliability.

Upgraded Performance:
As a newer, upgraded version of the 26148 and 26135 series, the 26605 offers a lighter backer plate, enhanced ceramic materials, and added foam protection. Unlike steel plates, these ceramic composite plates absorb projectiles within the strike face, eliminating dangerous bullet fragmentation and spall, ensuring safer real-world protection.

Key Features:

  • NIJ 0101.06 Certified Level IV – stops armor-piercing rifle rounds

  • Triple-Curve design – superior fit and comfort

  • Multi-Hit capable & stand-alone – maximum reliability in high-threat environments

  • High-density alumina ceramic core with composite fiber backing

  • Cordura nylon finish – rugged protection against wear and moisture

  • Foam strike-face pad – protects against severe drops and impacts

  • Made in the USA by LTC – the world’s leading hard armor manufacturer

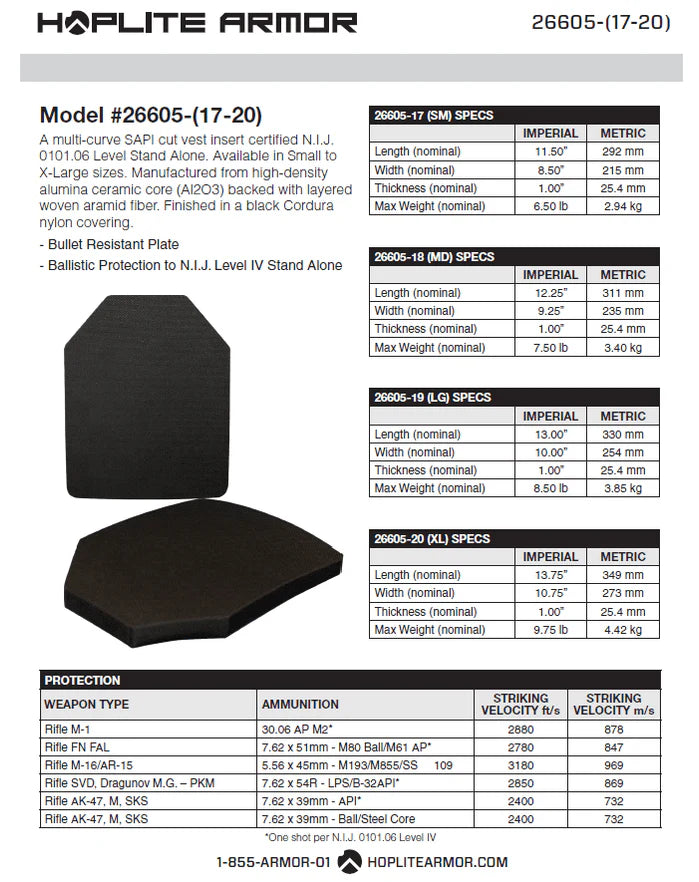

Sizes & Weights (Nominal):

  • Small: 8.5” x 11.5” – 6.5 lbs.

  • Medium: 9.5” x 12.5” – 7.5 lbs.

  • Large: 10.25” x 13.25” – 8.5 lbs.

  • XL: 11” x 14” – 9.75 lbs.
    Thickness: 1"

Compatibility:
Fits all standard SAPI cut plate carriers including Crye JPC 1.0 and 2.0. Match plate size to carrier size for optimal fit.

Lead Time:
Some popular sizes may require a 4–6 week lead time due to demand.

The 26605 Level IV SAPI Plate is the ultimate choice for professionals and responsible citizens seeking combat-proven, American-made ceramic body armor with unmatched protection and durability.

ROUNDS DEFEATED

Weapon Ammunition Striking Velocity (ft/s) Striking Velocity (m/s)
Rifle M-1 .30-06 AP M2 2880 878
Rifle FN FAL 7.62x51mm - M80 Ball 2780 847
Rifle FN FAL 7.62x51mm - M61 AP 2780 847
Rifle M-16 / AR-15 5.56x45mm - M193 / M855 / M855A1 3180 969
Rifle SVD / Dragunov / M.G.-PKM 7.62x54R - LPS 2850 869
Rifle SVD / Dragunov / M.G.-PKM 7.62x54R - L / LPS / B-32 API 2850 869
Rifle AK-47 / M / SKS 7.62x39mm - API 2400 732
Rifle AK-47 / M / SKS 7.62x39mm - Ball / Steel Core 2400 732
